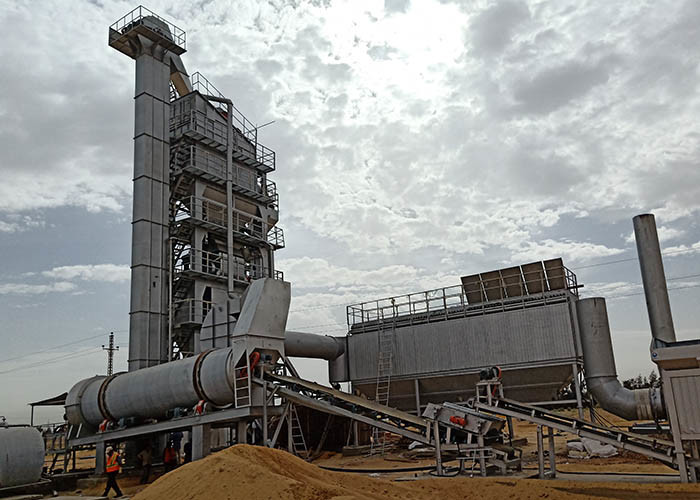

PLC Control Stationary Filter 550m2 Hot Mix Asphalt Plant

Product Categories
Henan ZOOMLINE Machinery Co., Ltd.
Contact Now

PLC Control Stationary Filter 550m2 Hot Mix Asphalt Plant

  • 1
  • 2

Brand Name : ZOOMLINE

Model Number : ZAP-S40-320

Certification : CE, ISO, EAC, EMC

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : about 30-40 days

Packaging Details : 40HQ container

Product name : Asphalt Hot Mix Plant

Burner : Italy EBICO Coal/Oil/Gas type

Condition : New

PLC : Japan ORMON

Weighing : Switzerland TOLEDO

Cylinder : Germany FESTO; China AirTAC

Bag dust filter : USA NOMEX Bag house filter

Voltage : 220V/380V-50Hz; adjustable, Local Condition

Control system : PLC+colorized Touching Screen

Mixing cycle : 45s

Contact Now

120T/P Stationary Hot Mixing Asphalt Mixing Plant

Product Description

Batch type asphalt mixing plant is designed by excellent structure which can make sure high quality asphalt mixture and high working performance. Batch type asphalt mixing plant comes from Europe, and adopted by China and many countries now. Main parts includes cold aggregate feeding system, drying drum, mixing tower, bitumen supply system, filler system, dust filtering system and control system.

ZOOMLINE Batch type asphalt mixing plant adopts European technology, the whole plant features including high performance, reliable operation, compact structure, modular design, low failure etc.. ZOOMLINE produces and supplies batch type asphalt mixing plant with capacity from 40TPH to 320TPH for whole world.

PLC Control Stationary Filter 550m2 Hot Mix Asphalt Plant

Technical parameters of 120tph batch asphalt mixing plant

Items ZAP-S120
Plant Capacity 120t/h
Cold Aggregate Feeding System
Hopper capacity 4 x 6.5m3
Belt capacity 120t/h
Drying System
Drying drum size(mm) 1800x8000
Drying capacity 120-140t/h
Burner (oil) kg/h 100-1000
Fuel consumption (oil) 6.5-7kg/t
Mixing Tower
Screen 4 layer
Aggregate weighing 3x1500kg
Bitumen weighing 3x200kg
Filler weighing 3x200kg
Mixer capacity 1500kg
Mixing cycle 45s
Dust Collecting System
Bag house filtering 550m2
Exhaust Fan power 45kw
Asphalt Temperature 140-180 ℃
Finished Asphalt Silo (Optional) 30 ton
Total Power -390kw


CONTROL SYSTEM
- Adopting Switzerland METTLER TOLEDO weighing modular improves weighing accuracy.
- Adopting HONEYWELL temperature intelligent control system makes control accurately and easily, makes sure burning smoothly and high quality of asphalt mixture.
- Adopting Germany SIEMENS electrical element, it helps working stably even in harsh working environment.
- Adopting Japan RMON PLC and touch screen with automatic data sheet control, makes it having high data processing capacity.
- Various operation data can be saved real-times.
- All system power switches can be controlled via control panel, easy operation and control.
- Multi-language compatibility, display language can be selected according to the customers preference.
- Control cabinet adopts IP55 safety protection class which can match highest industrial standard in whole globe.
- Containerized control room, with heat insulation and sound insulation layer Global remote automatic detection function.
